CNC Machining

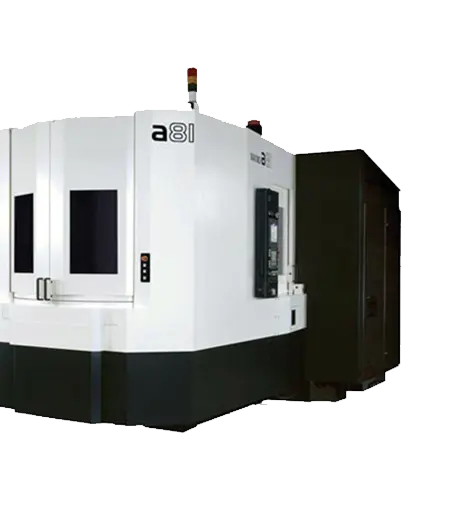

The a81 is a popular platform for high-volume large part machinings in cast iron and light alloys. Makino’s spindle integration with the drive motor’s rotor reduces vibration during high-speed operation and increases acceleration/deceleration. Rapid spindle acceleration to top speed in just 2.4 seconds helps substantially reduce non-cut time. Center trough quickly removes large chip volumes for enhanced reliability in the continuous machining of large parts. Pallet pool: 8.

10.000 rpm build in spindle is equipped with high power 25/30 kW and high torque 420 Nm as standard. This spindle is suitable for machining materials of aluminum alloy, cast iron and steel. The 1.050 Nm high torque gear type spindle is also available on the HB-630 for cast iron, steel and tough materials. HB-630 is applied mainly in the industries of automobile, construction machine, agricultural machines and general parts.

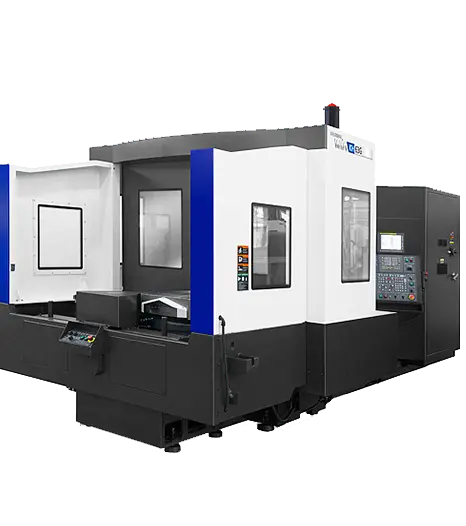

The HYUNDAI WIA KH63-6300 Series Horizontal Machining Centers feature a ‘T’ all-in-one structure bed designed with ample bed height and casting thickness to ensure the optimal level of rigidity. The double wall structure of the column is designed to prevent heat transformation, proving excellent in cutting performance and accuracy

High-speed machining of large parts with automated pallet changer and full 4th axis.

The world’s fastest rotary axis drive system for high-speed rotation and high-precision indexing.

The FH450S is a high-speed horizontal machining center featuring a 15,000 RPM spindle, tool-to-tool cycle time of 1.3 seconds, and a rapid feedrate of 1,968 ipm (50 m/min).

13,000rpm, gear driven dual contact spindle generates strong low end torque with fine finish capabilities

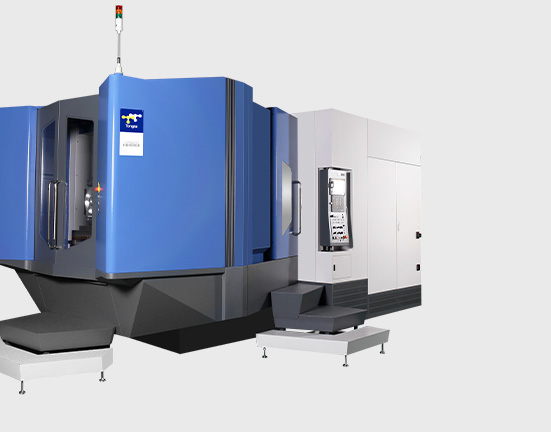

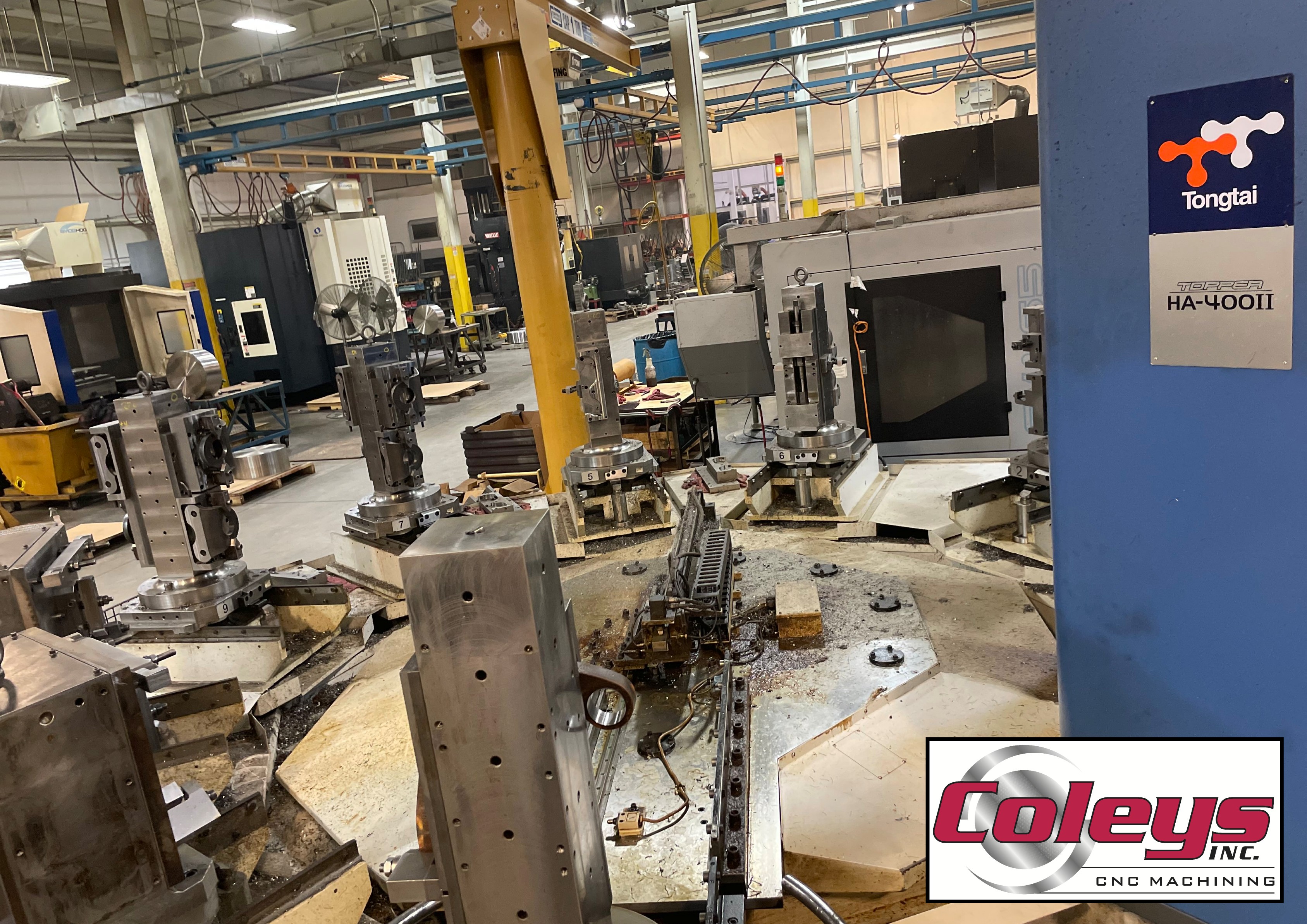

HA-400II adopts a 12.000 rpm spindle with a motor output of 25/22 kW and maximum torque of 233 Nm. This spindle is suitable for machining materials of aluminum alloy and steel, widely applied in the industries of automobile, hydraulic/pneumatic parts.

Twin pallet changer enables high speed machining of small parts in medium to large volumes.

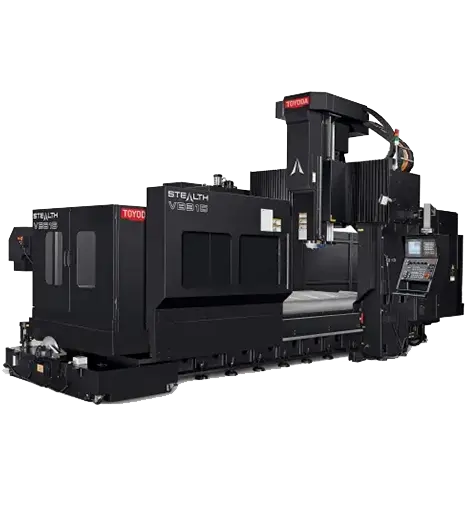

The Stealth VB315 is fixed rail bridge machine designed for heavy cutting applications. This machine features roller guides, a hydraulic counterbalance system on the headstock, and a powerful spindle. These features allow for highly precise and accurate cuts without sacrificing speed.

The FV1165 is a heavy-duty vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and a high-performance spindle.

High-performance table traverse machine, featuring the machining area, capabilities, accuracy, and high reliability required for machining automobile parts.

Higher productivity is achieved by reducing the time taken for starting/ending spindle operation, establishing high-speed ATC mode, creating G/M codes that produce shorter cycle times, and setting the optimal rapid feed time constant for the table load weight.

Original high performance motor and amplifier enables the spindle to instantaneously reach the maximum speed and stop accelerating.

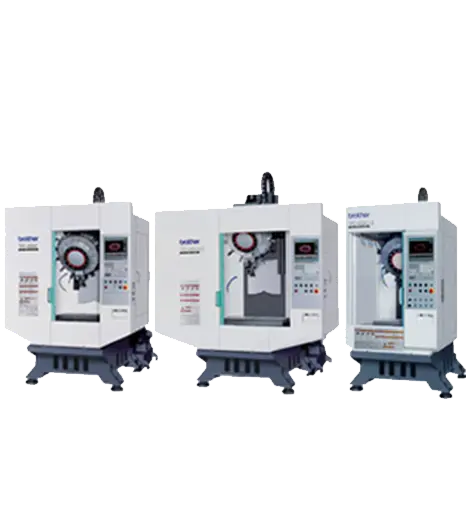

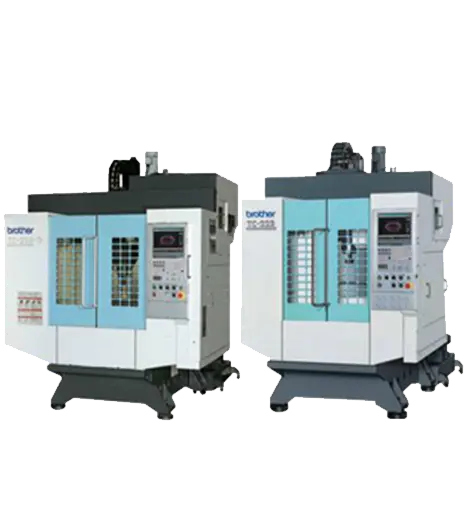

The QT (Quick Turn) table is Brother's original turn table - type high-speed 2-face pallet changer. High-speed pallet change is enabled by avoiding lift-up operation while achieving high reliability through a sealed structure.

Turning to 50” diameter, 59” swing, and 4,400 LB capacity

The PUMA 480XLM turning center is designed for heavy and interrupted cutting, long-term high accuracy, and superior surface finishes. High speed turret indexing and fast rapid traverse rates minimize non-cutting time. 120” turning length with 24” chuck, 40” boring bar for long bore machining, 6.50” bar capacity, hydraulic steady rest, 12” capacity

The Puma 400 series turning centers are designed for heavy and interrupted cutting, long-term high accuracy, and superior surface finishes. High speed turret indexing and fast rapid traverse rates minimize non-cutting time.

Equipped with Okuma’s high power, high torque PREX motor, this machine delivers high quality machining from heavy to high speed cutting with a through-hole diameter able to accommodate larger workpieces.

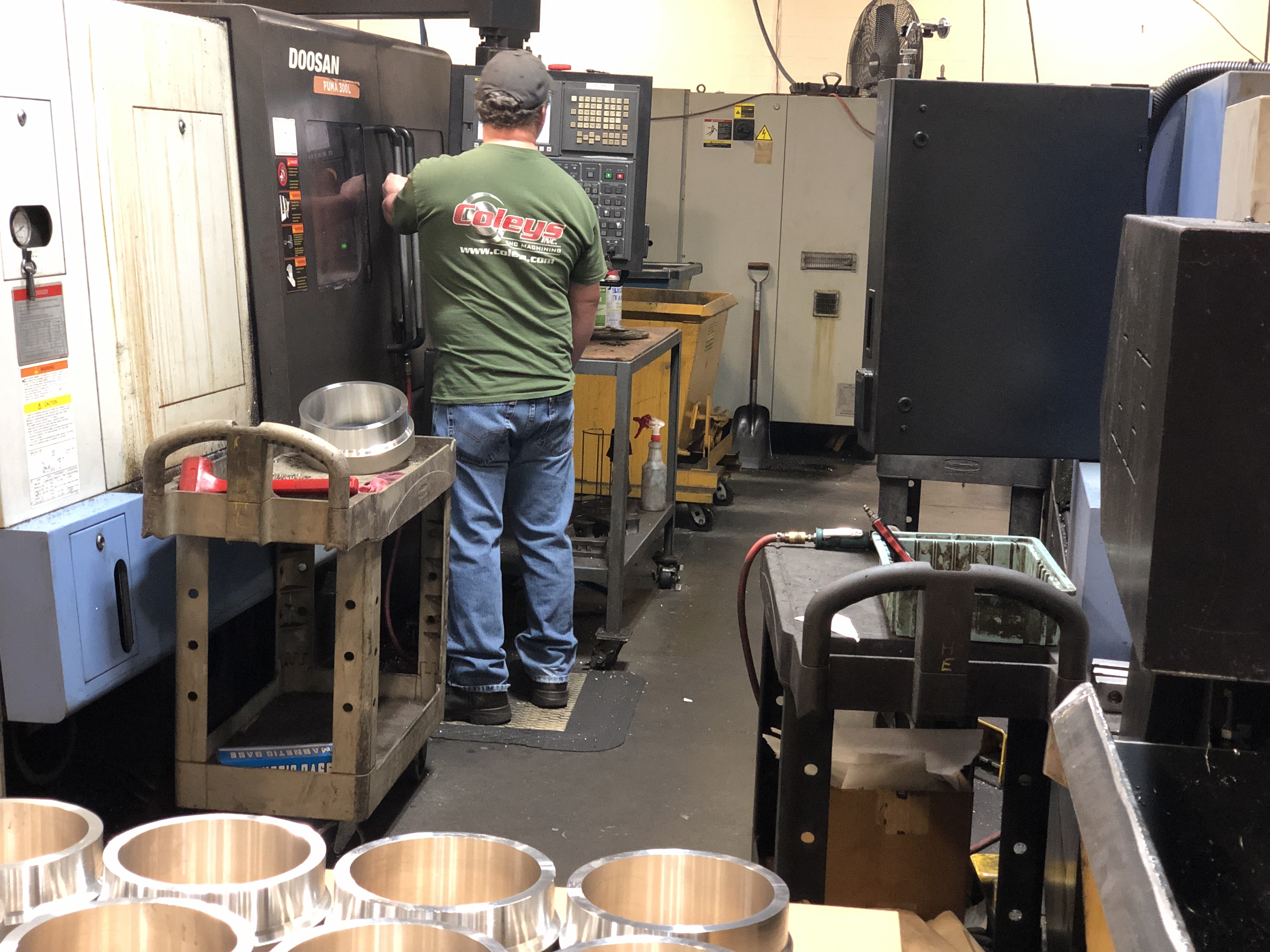

Coleys has three of these turning centers featuring 12” chuck, 4.00” bar capacity, 23.2” swing, and 50.4” maximum turning length.

Turning center with live tooling, sub-spindle, B and Y-axis with servo bar feed and 1000 PSI coolant pressure.

CNC turning center with 10” chuck, 2.75” bar capacity, and quick-change tooling.

High Productivity, Versatile & Integrated Lathe

High Productivity, Versatile & Integrated Lathe

6” chuck with 6000 RPM offers very high speed turning of small parts

Four spindle, twin turret CNC lathe with Fanuc LR Mate 200iB Robot, parts conveyor, and bowl feeder for unattended machining.

Manual swing-down tool pressure, high pressure coolant at 300 PSI, parts catcher and conveyor, barfeed interface BF-1500 5’ magazine barfeeder with 3 pusher sizes.

PUMA GT2600 Foit 30 HP A-2-8 3” bar feeder, parts catcher, Royal Roto-Rack with deluxe control.

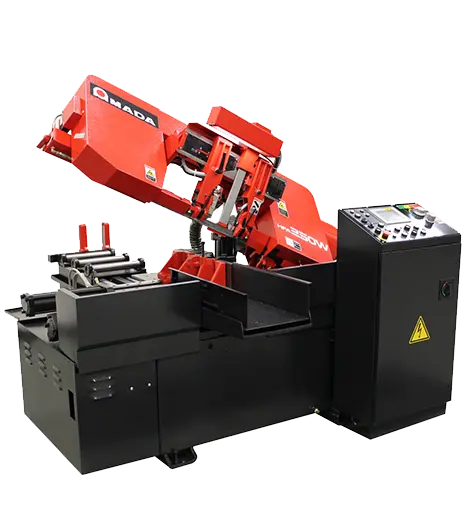

Very high speed cutting, up to 5” round in bar or tube. Close tolerance cutting with 24’ length capacity

1-1/2” blade and 15” diameter cutting capacity

Outstanding workpiece capacity with support from a massive saddle

24” Swing, 70” between centers, ProtoTRAK SLX CNC, 24” swing over bed, 70” between centers, 4 or 8-station tooling indexer for high-mix, low-volume work

Millport surface grinder with 16" x 24" working area.

Automated self-adjusting grinder with air gage

20” x 28” x 13” work capacity, includes Microsoft Windows, programmability and SPC

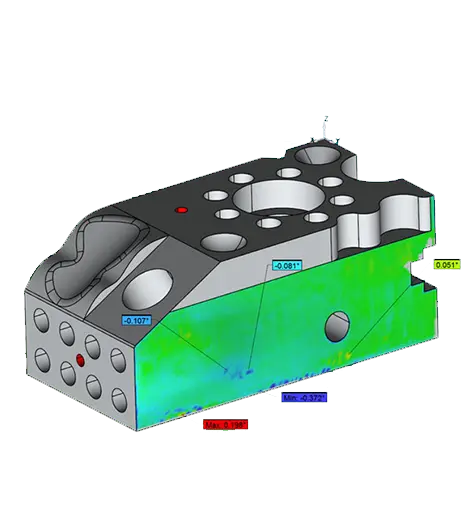

The Sheffield Measurement Cordax® Discovery CMM has been adopted by hundreds of manufacturers around the world and is the original shop floor CMM. Discovery III builds upon its predecessor’s many successes, featuring outstanding accuracy, extended thermal performance, and a modern industrial design.

Automated tip changer, part temperature sensor, 30” x 40” x 24”

48” working volume

When testing metals, indentation hardness correlates linearly with tensile strength. This important relation permits economically important nondestructive testing of bulk metal deliveries with lightweight, even portable equipment, such as hand-held Rockwell hardness testers.
